RX-3015 Plate And Tube Integrated Laser Cutting Machine

Description

The plate and pipe dual-purpose fiber laser cutting machine adopts a cast iron bed, a rack and pinion drive system, and a professional cutting and cutting pipe of the CNC system, so that the user is easy to use and simple to operate and maintain.

The machine is designed suitable for both sheet and pipe cutting
600 ℃ tempering, with 24 hours cooling in furnace ,by using imported finishing gantry milling precision.
Adopted high definition fiber laser source, with high speed and precision
Integrated design for the whole machine with left and right funnels as collectors to save space

Specially used for cutting 0.5mm-25mm carbon steel sheets and pipes: 0.5mm-10mm stainless steel sheets and pipes: galvanized steel sheets and pipes; electrolytic zinc-coated steel sheets and pipes; silicon steel sheets and pipes and other kinds of thin metal sheets and pipes. The pipes diameter is from 20mm-p200mm.

Tags:

INQUIRE NOW

PRODUCT DISPLAY

Technical Parameters

Product Model	RX-3015	RX-6015	RX-4020	RX-6020
Working Area	3000*1500mm	6000*1500mm	4000*2000mm	6000*2000m
Laser Power	1000W、1500W、2000W、3000W、4000W
Positioning Accuracy	±0.03mm/m
Repeated Positioning Accuracy	±0.02mm
Maximum Moving Speed	120m/min
Maximum Cutting Speed	60m/min
Drive System	High precision gear and rack + high precision linear guide rail
Voltage	380VAC ± 10%/50Hz
Cutting Pipe Performance	3015GT	3015GT	4020GT	6020GT
Maximun Moving Speed	120m/min
Maximun Cutting Speed	60m/min
Drive System	High precision gear and rack + high precision linear quide rail
Plate Cutting Performance	3015GT	6015GT	4020GT	6020GT
Pipe Dimension	Circular tube 20-200mm/Square tube 2020mm~150150mm
Processing Tube Type	Round tubes,rectanqular tube elliptical tubes, U tubes etc.
Maximum Pipe Length	3000mm-15000mm
Fast Moving Speed	30m/min
Rotational Speed	150r/min
Drive System	High precision gear and rack + high precision linear quide rail

Advantages

Request A Quote

Professional cutting and cutting pipe of the CNC system, so that the user is easy to use and simple to operate and maintain.

Cutting metal sheets and metal tubes, cost-saving, economical and practical

The electrical efficiency of greater than 30% wall-plug efficiency. Air-cooled or minimal cooling requirements

Stable and reliable light path system and control system

Easy operation and maintenance

Low operation cost, quality cutting, high efficiency.

Equipment

Fiber Laser Cutting Head and Automatic Tracking System

Equipped with a special fiber laser cutting head and a capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid the material scrap caused by the change of focal length when the material is uneven.
Machine Tool System

The mobile gantry structure can maintain long-term stability and anti-vibration; the aluminum beam has been professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining by large gantry milling machines to ensure the rigidity and stability of the machine tool. Good performance. The equipment has high precision, good rigidity and stable operation.
Machine Base

After professional manufacturing by professional large enterprises, secondary aging treatment, large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.
Slag discharge system

The lower part of the bed is equipped with a partition collector, which can automatically remove waste materials and collect small parts in the production process.
Dust removal system

The workbench is connected by an industrial dust collector, which is flexible and convenient. It collects dust on the spot and handles it on the spot. It uses a high-power turbo fan with strong suction, which can effectively ensure the cleanliness of the air and ensure a clean and tidy production environment. With sound-absorbing material inside, the noise reduction effect is obvious, so there is no need to worry about noise interference.
Transmission System

It adopts high-quality rack and pinion transmission and bilateral linear guides; and adopts the original servo motor drive system imported from Japan. Its control has the characteristics of stronger stability and better compatibility to ensure the machine tool under high-speed motion. Accuracy.
Red Light Indication

The fiber laser cutting machine is equipped with a red light collimator, which can help the operator to calibrate the laser cutting head at any position on the plate.
Cooling System

The fiber laser is equipped with a water-cooling system. The temperature of the refrigeration unit is displayed by a digital meter. The refrigeration unit will automatically cool when the water temperature exceeds the specified temperature, and the refrigeration unit will automatically stop cooling when the water temperature is below the specified temperature, with electric heating function.

Details

1

Laser Source

The fiber laser generator adopts MAX fiber source, with stable performance, suitable for 24 hours continuous operation, meeting the requirements of laser industrial production without interruption
Optional : IPG fiber source, Raycus fiber source
More Options
2

Swiss Raytool Laser Cutting Head

Swiss imported raytool laser cutting head with autofocus
High cutting speed and best cutting quality
Easier faster protective glass cartridge change
Temperature constant distance control and Scale for setting the focus position in lateral and vertical position
More Options
3

Transmission System

Work with HIWIN guide rail, gear rack transmission system improve cutting speed compare to ball screw transmission. Also can keep good stability and high precision when do cutting.
4

Double Temperature Double Control System

Fiber lasers above 500W need to be equipped with a fiber laser chiller. The higher the power, the higher the cooling capacity of the fiber laser chiller.
5

Stable and Solid Bed

Strictly make table with hardening, tempering and annealing treatment to ensure no deformation during long time production. Body welded sheet thickness 12mm. Max can load 500KG metal sheet, no distortion after long time use.
6

Control Cabinet

We use Cypcut, which is the most famous brand in this line.
Support multiple languages, simple and clear, easy to operate.
More Options
7

Japan's Fuji or Yaskawa Servo Drive

Bear 3 times rated torque load, high speed good performance, strong overload protection
8

Self-centering Chuck

Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable;
Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

Application

The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.

Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.

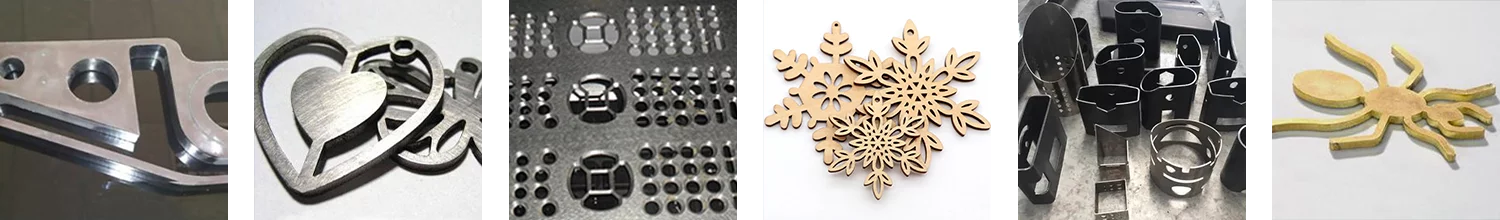

Cutting Sample
