RX-3015H 6kw-15kw Enclosed Exchanged Table Fiber Laser Cutting Machine

Features

  • Very easy to operate.
  • Quick and easy installation.
  • Low investment and operating costs.
  • The most cost-efficient solution for every requirement
  • Flexible beam path
  • High output power
  • High optical quality
  • Up to 300% faster cutting
  • High wall plug efficiency (>%30)
  • Copper, brass cutting ability
  • High performance and high accuracy rack and pinion
INQUIRE NOW

PRODUCT DISPLAY

Technical Parameters

Product Model

RX-3015

RX-6015

RX-4020

RX-6020

Working Area

3000*1500mm

6000*1500mm

4000*2000mm

6000*2000m

Laser Power

1000W、1500W、2000W、3000W、4000W

Positioning Accuracy

±0.03mm/m

Repeated Positioning Accuracy

±0.02mm

Maximum Moving Speed

120m/min

Maximum Cutting Speed

60m/min

Drive System

High precision gear and rack + high precision linear guide rail

Voltage

380VAC ± 10%/50Hz



Equipment

  • Fiber Laser Cutting Head and Automatic Tracking System

    Equipped with a special fiber laser cutting head and a capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid the material scrap caused by the change of focal length when the material is uneven.

  • Machine Tool System

    The mobile gantry structure can maintain long-term stability and anti-vibration; the aluminum beam has been professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining by large gantry milling machines to ensure the rigidity and stability of the machine tool. Good performance. The equipment has high precision, good rigidity and stable operation.

  • Machine Base

    After professional manufacturing by professional large enterprises, secondary aging treatment, large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.

  • Slag discharge system

    The lower part of the bed is equipped with a partition collector, which can automatically remove waste materials and collect small parts in the production process.

  • Dust removal system

    The workbench is connected by an industrial dust collector, which is flexible and convenient. It collects dust on the spot and handles it on the spot. It uses a high-power turbo fan with strong suction, which can effectively ensure the cleanliness of the air and ensure a clean and tidy production environment. With sound-absorbing material inside, the noise reduction effect is obvious, so there is no need to worry about noise interference.

  • Transmission System

    It adopts high-quality rack and pinion transmission and bilateral linear guides; and adopts the original servo motor drive system imported from Japan. Its control has the characteristics of stronger stability and better compatibility to ensure the machine tool under high-speed motion. Accuracy.

  • Red Light Indication

    The fiber laser cutting machine is equipped with a red light collimator, which can help the operator to calibrate the laser cutting head at any position on the plate.

  • Cooling System

    The fiber laser is equipped with a water-cooling system. The temperature of the refrigeration unit is displayed by a digital meter. The refrigeration unit will automatically cool when the water temperature exceeds the specified temperature, and the refrigeration unit will automatically stop cooling when the water temperature is below the specified temperature, with electric heating function.

Details

  • 1

    Laser Source

    The fiber laser generator adopts MAX fiber source, with stable performance, suitable for 24 hours continuous operation, meeting the requirements of laser industrial production without interruption
    Optional : IPG fiber source, Raycus fiber source

    More Options
  • 2

    Swiss Raytool Laser Cutting Head

    Swiss imported raytool laser cutting head with autofocus
    High cutting speed and best cutting quality
    Easier faster protective glass cartridge change
    Temperature constant distance control and Scale for setting the focus position in lateral and vertical position

    More Options
  • 3

    Transmission System

    Work with HIWIN guide rail, gear rack transmission system improve cutting speed compare to ball screw transmission. Also can keep good stability and high precision when do cutting.

  • 4

    Double Temperature Double Control System

    Fiber lasers above 500W need to be equipped with a fiber laser chiller. The higher the power, the higher the cooling capacity of the fiber laser chiller.

  • 5

    FSCUT Series 1000-8000 CNC Control System

    System upgrade is easy.
    System function can be extended by software itself, not like common CNC system, which must depend on the developers.
    Simple operation, easy to learn

    More Options
  • 6

    Japan's Fuji or Yaskawa Servo Drive

    Bear 3 times rated torque load, high speed good performance, strong overload protection

  • 7

    Big Enclosure Design

    Full closed protection improves using security: laser protection glass protect human beings from laser radiation;automatic collection system of smokes and dusts is environment friendly.

  • 8

    Two Automatic Exchange Platforms System

    1.Rapid exchanging between two platforms greatly improve work efficiency.
    2.Strong shock absorption and wear resistance.
    3.Good casting and cutting performance.

Application

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts,Glasses Frame, Electronic Parts, Nameplates, etc.

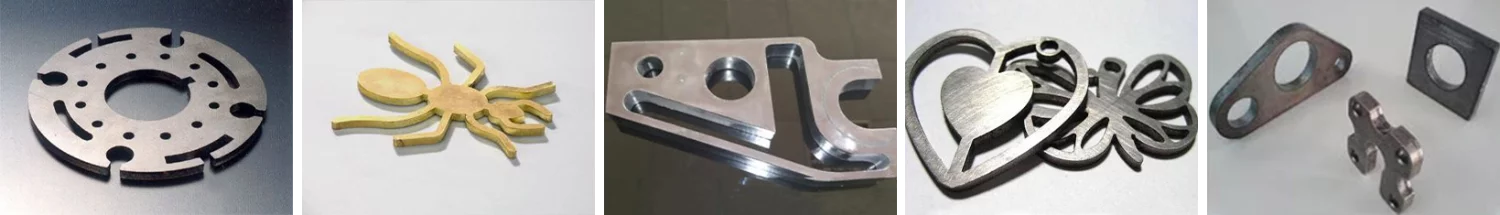

Cutting Sample
