RX-E Series Synchro Electric CNC Press Brake Machine 4-6-8Axis

Description

  • It adopts all-electric servo design precision folding bed, and has a high-rigidity and stable body design.
  • With high-speed back gauge and precision dual-servo motor spindle drive, it can achieve stable processing with high-speed precision.
  • It can greatly save 60% of the power used, and there is no need to replace the oil and oil pressure valve regularly.
  • There is no problem of oil temperature change affecting the machining accuracy, which can reduce the influence of thermal effect.
  • It is suitable for rapid production of small samples and stable processing of a large number of high-speed and high-precision.
  • It can be used in multi-stage continuous combined bending processing, which greatly improves production efficiency.
INQUIRE NOW

PRODUCT DISPLAY

Technical Parameters

Type

Nominal pressure

(kn)

Workbench length

(mm)

Poles distance (mm)

Max Opening Height

(mm)

Throat depth

(mm)

Slider speed(mm/s)

X-axis stroke

(mm)

R-axis stroke

(mm)

Weight

(T)

Dimensions L*W*H

(mm)

 Motor (kw)

Rapid speed

Return speed

Work speed

30T1250

300

1250

1010

465

300

200

180

0-30

450

150

3.8

2000*1600*2490

2*12

40T1600

400

1600

1360

560

300

200

180

0-30

450

150

4.5

2200*1600*2590

2*12

60T2000

600

2000

1800

560

350

200

180

0-30

500

150

5.5

2700*1700*2690

2*24.1

70T2500

700

2500

2100

560

350

200

180

0-30

500

150

6.5

3000*1700*2690

2*24.1

FEA & Stress Analysis FEA & Stress Analysis

Stress Analysis & Finite Element Analysis.

The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading, transient modeling, and a combination of the above, FEA makes sense.

Configuration

Request A Quote

Adopt DELEM DA66T from the Netherlands

Main power system adopt mechanical servo synchronized control system

Backgauge has two axis as standard, X axis move forward and backward, R axis move upward and downward, finger block can move easily along cylindrical guide

Adopt mechanical fast clamp and European type upper tooling, 2-V quick change for bottom die

Advantages

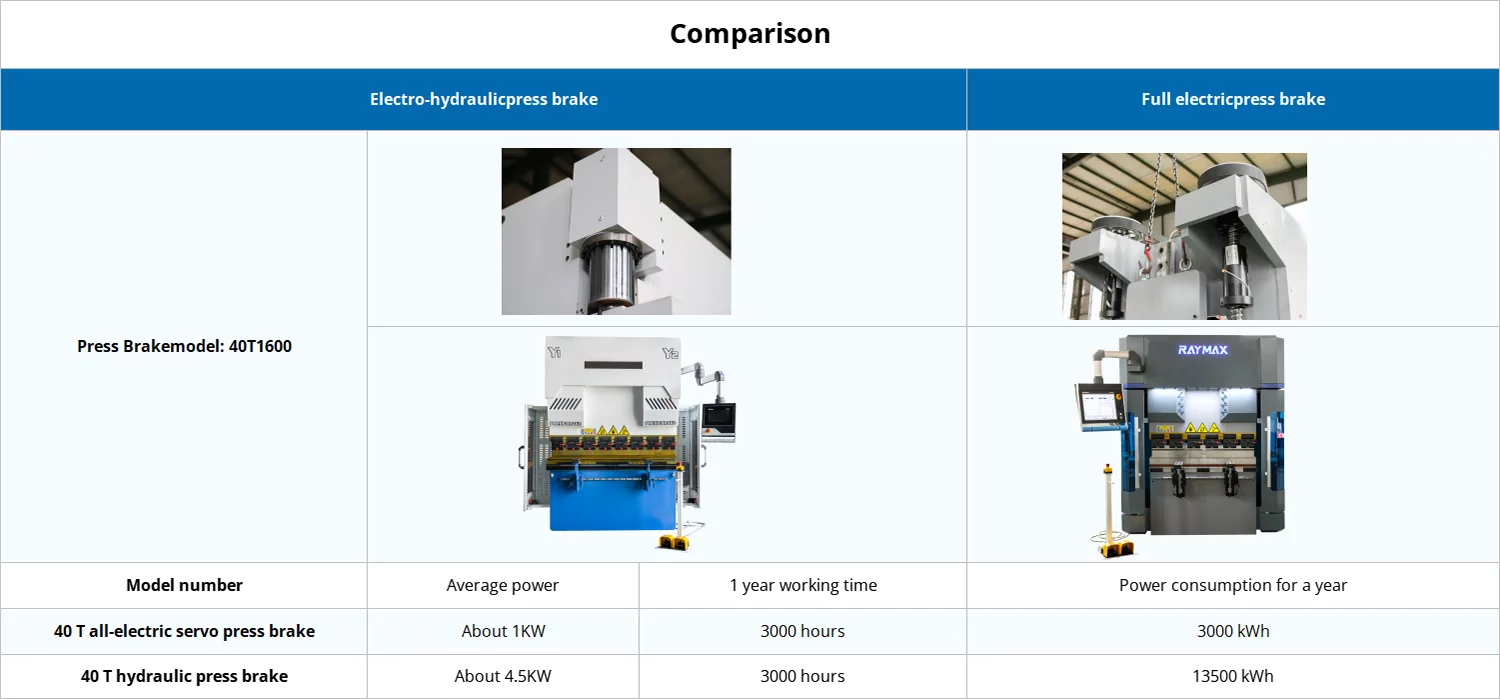

Special power saving: The difference in electricity consumption between an all-electric servo bending machine and an electro-hydraulic CNC bending machine is like the difference between an inverter air conditioner and an ordinary air conditioner. The all-electric servo bending machine automatically outputs the appropriate power according to the working conditions, and the power consumption during idle time is less than 0.5kw, so special power saving.

Green and environmental protection: no need to use and replace hydraulic oil, which ends the pollution of waste hydraulic oil to the environment.



Details

  • 1

    Fast Clamping

    Using mechanical fast clamp for upper dies, changing dies more convenient and safe.

  • 2

    Tsubaki Hoover Lead Screw

    The transmission slider reciprocates, the output force is stable, the transmission precision is high, and the consistency of the bending pressure is guaranteed.

  • 3

    Front Plate Support

    Movable front material support on linear guider can move left and right by hand very easy.

    More Options
  • 4

    High Precision Backgauge

    Using servo motor to drive the positioning axis, the mechanical structure is compact, the running speed is fast, the stability is high, and the repeated positioning accuracy is high.

    More Options
  • 5

    Inovance Servo Motor

    General standard imported circuit board components, convenient maintenance, high torque, high precision, fast response, low noise and so on.

    More Options
  • 6

    DA66T Control System

    The DA-66T Touch controls feature the embedded, real-time Windows operating system for maximum reliability. Smooth start-ups ensured, even after instant shut-off.

    More Options
  • 7

    Foot Pedal Switch

    It is movable and can stop the machine anytime by the emergency button.

  • 8

    DSP Laser Safety Protection (Optional)

    DSP laser safety protection device comprehensively protects the personal safety of bending machine operators and avoids danger due to the rapid movement of the slider on the machine.
