Y41 Single Column Hydraulic Press Machine

Features

The Y41 single column hydraulic press is a 'C' type single column construction with welded steel body. The power press hydraulic system is built into the body. The lower part of the bed is equipped with hydraulic pads and the working pressure stroke can be adjusted within the specified range. A 'PLC' programmable controller is used for the electrical control.

Hydraulic press machine can be operated in adjustable, manual or semi-automatic mode and is centrally controlled by push buttons. This range of hydraulic presses is suitable for drawing, blanking, bending, crimping, straightening, punching, cold and hot extruding of metals, and for die-casting and moulding of powder and plastic products.

INQUIRE NOW

PRODUCT DETAILS

Feature of Y41 Hydraulic Press Machine

(1) Single column power press is suitable for automatically running form, punch, bend, straighten and multi-press assembly into an automatic production line.

(2) The hydraulic press machine integrated cartridge valve system provides reliability, longevity and low hydraulic shock.

(3) C frame press machine with independent electric control, reliable and maintenance-friendly.

(4) Hydraulic press is totally enclosed drive for easy maintenance, exposed overhanging parts, sliding and bolting table with T-slots.

(5) Hydraulic press machine’s handrail and safety lock ensure safe operation, detachable single-handed treadle switch for easy operation.

(6) According to customer requirements, the press machine working pressure can be adjusted from 50T to 500T.

Advantage of Y41 Hydraulic Press Machine

1. Hydraulic press machine adopts built-in fast cylinder, with fast idle stroke speed and high production efficiency;

2. With oil hydraulic press, the convenient manual adjustment mechanism can adjust the pressure head or the upper workbench to press at any position in the stroke, and can also adjust the length of the fast forward and work advance strokes within the designed stroke;

3. The single press machine pressure can be adjusted infinitely according to process requirements;

4. The sturdy open structure of the overall welding can maintain sufficient rigidity of the hydraulic press machine body while providing convenient operating space.

Technical Parameters

Type

Unit

25T

40T

63T

100T

160T

200T

250T

315T

400T

500T

1500T

Nominal force

KN

250

400

630

1000

1600

2000

2500

3150

4000

5000

15000

Max.hydraulic pressure

Mpa

21

25

25

25

25

25

26

25

25

25

25

Max.opening height

mm

430

510

550

500

650

900

900

900

900

900

1000

Slipper stroke)

mm

500

500

500

500

500

500

500

500

500

500

500

Slider descending speed

mm

≥35

40

30

24

≥20

18

23

23

23

23

18

Slider return rate

mm

≥85

80

70

50

≥80

55

55

55

55

55

50

Laryngeal deep

mm

320

250

250

320

360

380

380

400

400

450

500

Ejecting stroke speed(mm/s)

Before and after

mm











700

700

750

750

750

800

around

mm











900

900

900

900

900

1000

Workbench is apart from the ground height

mm











750

800

850

900

900

900

Motor power

Kw

5.5

7.5

7.5

11

15

15

15

15

22

37

2-45

Details

  • 1

    Hydraulic Cylinder

  • 2

    Workbench

  • 3

    Hydraulic Valve

  • 4

    Electric Cabinet

  • 5

    Control Panel

  • 6

    Protective Fence (Optional)

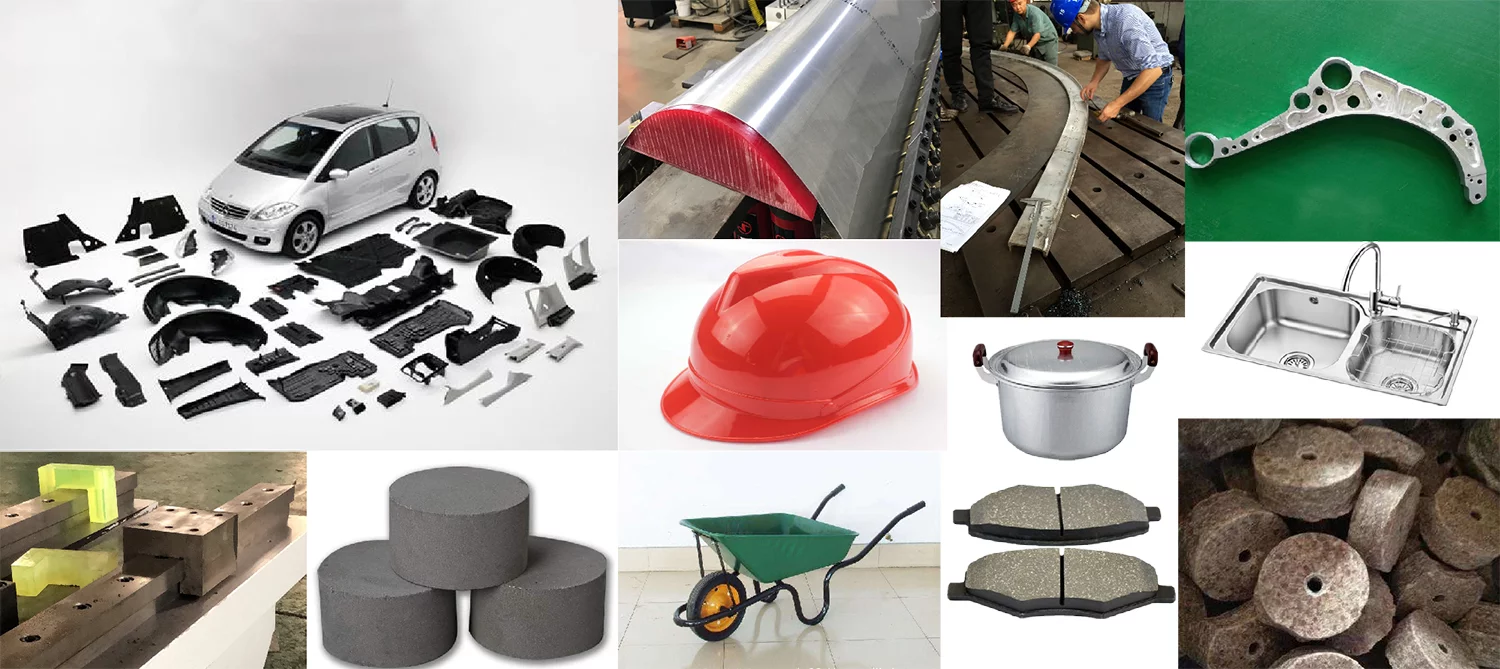

Application

Drawing,bending,flanging,cold extruding,blanking processes for materials;straightening,press-inand forming processes for powder and abrasive products,plastic and insulation materials.
