YTD28 Hydraulic Press Machine

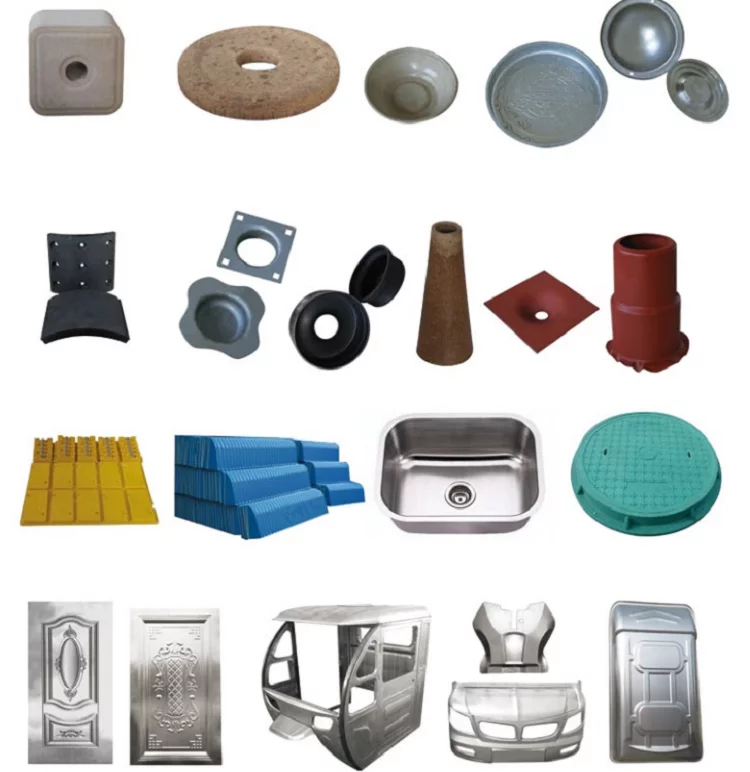

The hydraulic press of this series is the double-movementhydraulic press for sheet metal drawing. It is particularly fit for drawing ,forming, flanging, bending and stamping of sheet metals for making parts and components. It is also fit for stamping process and pressing process.
The hydraulic system has a two-way cartridge inserted valve,the electrical system has PLC for control. Thus, the machine canbe conveniently operated.
The hydraulic press is characterized with high speed underno-load condition, high efficiency in energy utilization and low power consumption with the blank holder pressure and drawing force adjustable. It is an ideal equipment for the forming of sheet metal.

INQUIRE NOW

Item		Unit	YTD28-63/100	YTD28-100/150	YTD28-150/200	YTD28-200/300	YTD28-220/315	YTD28-400/650	YTD28-400/600
Nominal Force		KN	1000	1500	2000	3000	3150	6500	6000
Drawing Force		KN	630	1000	150	2000	2200	4000	4000
Knock out Force		KN	190	190	400	400	400	1000	630
Blank-holder Force		KN	300	500	630	800	1000	2300	2000
Max.pressure of liquid		Mpa	25	25	25	25	25	25	25
Stroke of drawing slide		mm	600	600	700	800	800	1100	800
Stroke of Bland-holder slide		mm	250	250	250	400	350	1000	720
Stroke of knock out cylider		mm	200	250	250	350	350	300	400
daylight of drawing slide		mm	1000	1200	1300	1400	1560	1600	2190
Daylight of Blank holder slider		mm	600	750	900	720	820	1600	1300
Table area		mm²	720x580	800x800	1000x900	980x900	1120x1120	2600x1800	1250x1250
Speed	Rapid down	mm/s	100	100	100	100	100	200	100
	Deceleat down	mm/s	20	20	20	20	20	30	16
	Pressing	mm/s	10～20	10～20	10～20	10～20	10～20	20	10～16
	Return	mm/s	100	100	100	135	100	200	100
	Knock-out	mm/s	95	95	60	60	90	100	100
	Return	mm/s	220	220	180	180	200	200	200
Overall dimensions of machine	L-R	mm	2500	2300	3800	3800	3800	5400	4300
	F-B	mm	1500	900	1800	1800	1800	3600	2315
	Height above floor	mm	3200	3600	4400	4600	4400	9300	5240
Total power		KW	11	15	22	37	37	90	37
Remark		mm	300x300	380x380	500x500	600x550	800x600	1600x1000	800x800
